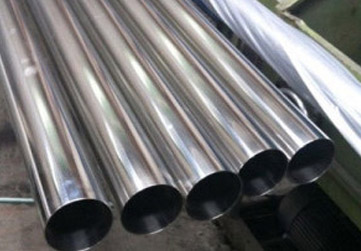

Despite the market having a variety of stainless steel grades, the price of those alloys is higher. The viability of employing these alloys enters the picture for some applications. Welded pipes made of grade 201 stainless steel are required for these applications. This particular grade has some of the lowest prices on the market. Due to the SS 201 Welded Pipe's much reduced nickel concentration, the alloy is less expensive.
Several stainless steel alloys get improved corrosion resistant qualities when nickel is added. The chemistry of the Stainless Steel 201 Welded Pipe was altered by the inclusion of higher amounts of manganese and nitrogen due to the absence of a higher content of nickel. Manganese and nitrogen both boost the hardenability and yield strength of Astm A358 Tp 201 Efw Pipe that contains little to no nickel.
Astm A312 Uns S20100 Erw Pipe is preferred for applications that call for high levels of toughness with little to no corrosion resistance qualities. This material is typically used a lot in settings when it is cold outside. The Din 1.4436 Rectangular Pipe retains its hardness in cold environments, unlike certain standard alloys that become brittle and shatter. Another functional area that makes use of the Asme Sa312 Tp 201 Square Pipe is structural piping systems. The austenitic stainless steel grade 301 and sus 201 schedule 40 pipe both have good formability, corrosion resistance, and fabricability.
| Sizes: | 1/8" to 24" |
| ASTM A312 Steel grades: | TP304/304L/304H |
| ASTM A312 Schedules: | STD, XS, XXS, SCH5S, SCH10/10S, SCH20, SCH30, SCH40/40S, SCH60, SCH80/80S, SCH100, SCH120, SCH140, SCH160 |
| Standards: | ASTM A312, ASME SA312 |
| Lengths: | SRL and DRL 5meters up to 11meters available from Stock or Production. |
| Ends: | Plain/Bevelled |
| PIPE SIZE |
OD IN INCHES |
A.S.A. Pipe Schedules | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5s | 5 | 10s | 10 | 20 | 30 | 40s & Sth. |
40 | 60 | 80s & E.H. |
80 | 100 | 120 | 140 | 160 | DBL E.H. |
||
| 1/8 | .405 | .035 .1383 |
.049 .1863 |
.049 .1863 |
.068 .2447 |
068 .2447 |
0.95 .3145 |
0.95 .3145 |
|||||||||
| 1/4 | .540 | .049 .2570 |
.065 .3297 |
.065 .3297 |
.088 .4248 |
088 .4248 |
.119 .5351 |
.119 .5351 |
|||||||||
| 3/8 | .675 | .049 .3276 |
.065 .4235 |
.065 .4235 |
.091 .5676 |
.091 .5676 |
.126 .7338 |
.126 .7338 |
|||||||||
| 1/2 | .840 | .065 .5383 |
.065 .5383 |
.083 .6710 |
.083 .6710 |
.109 .8510 |
.109 .8510 |
.147 1.088 |
.147 1.088 |
.187 1.304 |
.294 1.714 |
||||||
| 3/4 | 1.050 | .065 .6838 |
.065 .6838 |
.083 .8572 |
.083 .8572 |
.113 1.131 |
.113 1.131 |
.154 1.474 |
.154 1.474 |
.218 1.937 |
.308 2.441 |
||||||
| 1 | 1.315 | .065 .8678 |
.065 .8678 |
.109 1.404 |
.109 1.404 |
.133 1.679 |
.133 1.679 |
.179 2.172 |
.179 2.172 |
.250 2.844 |
.358 3.659 |
||||||
| 1-1/4 | 1.660 | .065 1.107 |
.065 1.107 |
.109 1.806 |
.109 1.806 |
.140 2.273 |
.140 2.273 |
.191 2.997 |
.191 2.997 |
.250 3.765 |
.382 5.214 |
||||||
| 1-1/2 | 1.900 | .065 1.274 |
.065 1.274 |
.109 2.085 |
.109 2.085 |
.145 2.718 |
.145 2.718 |
.200 3.631 |
.200 3.631 |
.281 4.859 |
.400 6.408 |
||||||
| 2 | 2.375 | .065 1.604 |
.065 1.604 |
.109 2.638 |
.109 2.638 |
.154 3.653 |
.154 3.653 |
.218 5.022 |
.218 5.022 |
.343 7.444 |
.436 9.029 |
||||||
| 2-1/2 | 2.875 | .083 2.475 |
.083 2.475 |
.120 3.531 |
.120 3.531 |
.203 5.793 |
.203 5.793 |
.276 7.661 |
.276 7.661 |
.375 10.01 |
.552 13.70 |
||||||
| 3 | 3.500 | .083 3.029 |
.083 3.029 |
.120 4.332 |
.120 4.332 |
.216 7.576 |
.216 7.576 |
.300 10.25 |
.300 10.25 |
.437 14.32 |
.600 18.58 |
||||||
| 3-1/2 | 4.000 | .083 3.472 |
.083 3.472 |
.120 4.973 |
.120 4.973 |
.226 9.109 |
.226 9.109 |
.318 12.51 |
.318 12.51 |
.636 22.85 |
|||||||
| 4 | 4.500 | .083 3.915 |
.083 3.915 |
.120 5.613 |
.120 5.613 |
.237 10.79 |
.237 10.79 |
.281 12.66 |
.337 14.98 |
.337 14.98 |
.437 19.01 |
.531 22.51 |
.674 27.54 |
||||
| 4-1/2 | 5.000 | .247 12.53 |
.355 17.61 |
.710 32.53 |
|||||||||||||
| 5 | 5.563 | .109 6.349 |
.109 6.349 |
.134 7.770 |
.134 7.770 |
.258 14.62 |
.258 14.62 |
.375 20.78 |
.375 20.78 |
.500 27.04 |
.625 32.96 |
.750 38.55 |
|||||
| 6 | 6.625 | .109 7.585 |
.109 7.585 |
.134 9.290 |
.134 9.290 |
.280 18.97 |
.280 18.97 |
.432 28.57 |
.432 28.57 |
.562 36.39 |
.718 45.30 |
.864 53.16 |
|||||
| 7 | 7.625 | .301 23.57 |
.500 38.05 |
.875 63.08 |
|||||||||||||
| Medium Type = Wall thickness in inches Bold Type = Steel weight per foot in pounds |
|||||||||||||||||
| NPS | OD | SCH 5S | SCH 10S | SCH 40S | SCH 80S |
|---|---|---|---|---|---|
| 1/4 | 13.72 | – | 1.65 | 2.24 | 3.02 |
| 3/8 | 17.15 | – | 1.65 | 2.31 | 3.2 |
| 1/2 | 21.34 | 1.65 | 2.11 | 2.77 | 3.73 |
| 3/4 | 26.67 | 1.65 | 2.11 | 2.87 | 3.91 |
| 1 | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 |
| 1.25 | 42.16 | 1.65 | 2.77 | 3.56 | 4.85 |
| 1.5 | 48.26 | 1.65 | 2.77 | 3.68 | 5.08 |
| 2 | 60.33 | 1.65 | 2.77 | 3.91 | 5.54 |
| 2.5 | 73.03 | 2.11 | 3.05 | 5.16 | 7.01 |
| 3 | 88.9 | 2.11 | 3.05 | 5.49 | 7.62 |
| 3.5 | 101.6 | 2.11 | 3.05 | 5.74 | 8.08 |
| 4 | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 |
| 5 | 141.3 | 2.77 | 3.4 | 6.55 | 9.53 |
| 6 | 168.28 | 2.77 | 3.4 | 7.11 | 10.97 |
| 8 | 219.08 | 2.77 | 3.76 | 8.18 | 12.7 |
| 10 | 273.05 | 3.4 | 4.19 | 9.27 | 12.7 |
| 12 | 323.85 | 3.96 | 4.57 | 9.53 | 12.7 |
| 14 | 355.6 | 3.96 | 4.78 | 9.53 | 12.7 |
| 16 | 406.4 | 4.19 | 4.78 | 9.53 | 12.7 |
| 18 | 457.2 | 4.19 | 4.78 | 9.53 | 12.7 |
| 20 | 508 | 4.78 | 5.54 | 9.53 | 12.7 |
| 22 | 558.8 | 4.78 | 5.54 | – | – |
| 24 | 609.6 | 5.54 | 6.35 | 9.53 | 12.7 |
| 26 | 660.4 | – | – | – | – |
| 28 | 711.2 | – | – | – | – |
| 30 | 762 | 6.35 | 7.92 | – | – |
| Element | Content (%) |
|---|---|
| Iron, Fe | 72 |
| Chromium, Cr | 16.0 – 18.0 |
| Manganese, Mn | 5.50 – 7.50 |
| Nickel, Ni | 3.50 – 5.50 |
| Silicon, Si | 1.0 |
| Nitrogen, N | 0.25 |
| Carbon, C | 0.15 |
| Type | Yield Strength 0.2% offset (KSI) | Tensile Strength (KSI) | % Elongation (2" Gauge length) |
Hardness Rockwell |
|---|---|---|---|---|
| SS 201 Ann | 38 min. | 75 min. | 40% min. | HRB 95 max. |
| SS 201 ¼ Hard | 75 min. | 125 min. | 25.0 min. | 25 – 32 HRC (typical) |
| SS 201 ½ Hard | 110 min. | 150 min. | 18.0 min. | 32 – 37 HRC (typical) |
| SS 201 ¾ Hard | 135 min. | 175 min. | 12.0 min. | 37 – 41 HRC (typical) |
| SS 201 Full Hard | 145 min. | 185 min. | 9.0 min. | 41 – 46 HRC (typical) |
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.86 g/cm3 | 0.284 lb/in³ |
| NPS | ASTM A312 TP201 OD Tolerance | |||
|---|---|---|---|---|
| + | – | |||
| inch | mm | inch | mm | |
| 1/8~1 1 /2 > 1 1 /2~4 > 4~8 > 8~18 > 18~26 > 26~34 > 34~48 |
1/64(0.015) 1/32(0.031) 1/16(0.062) 3/32(0.093) 1/8(0.125) 5/32(0.156) 3/16(0.187) |
0.4 0.8 1.6 2.4 3.2 4.0 4.8 |
1/32(0.031) 1/32(0.031) 1/32(0.031) 1/32(0.031) 1/32(0.031) 1/32(0.031) 1/32(0.031) |
0.8 0.8 0.8 0.8 0.8 0.8 0.8 |
| NPS | ASTM A312 TP 201 WT Tolerance, % | |
|---|---|---|
| + | – | |
| 1/8-2 1 /2 | 20.0 | 12.5 |
| 3~18, t/D≤ 5% | 22.5 | 12.5 |
| 3~18, t/D> 5% | 15.0 | 12.5 |
| ≥ 20, welded | 17.5 | 12.5 |
| ≥ 20, seamless, t/D≤ 5% | 22.5 | 12.5 |
| ≥ 20, seamless, t/D> 5% | 15.0 | 12.5 |
