ASME SA 193 Gr B6 Stainless Steel Studs manufacturer in india, check Price list in mumbai

ASTM A193 Grade B6 Bolts



Your Need For ASTM A193 B6 Stainless Steel Fasteners Of Standard Size And Length Ends Here, We Provide The Best Quality,

A martensitic class of stainless steel, or alloy 410, is referred to as grade B6. These martensitic materials are designed to be used generally.ASTM A193 B6 Stainless Steel Bolts contain 11.5 percent chromium on average. Chromium tends to have better corrosion resistance qualities when alloyed with stainless steel alloys. Although the materials' ability to withstand corrosion ASTM A193 Grade B6 Bolts are high, it is possible to raise it by utilising a variety of additional techniques.

To strengthen the corrosion resistance of metals, for example, techniques include hardening, tempering, and polishingA193 B6 Stainless Steel Studs.For ordinary applications, single-grade B6 bolts are helpful; nevertheless, they also need to be well-hardened. then, when theASTM A193 B6 Stud Bolts are processed by quenching and tempering stainless steel 410 will get hardened. The use of ASTM A193 Grade B6 Fasteners are widely used in applications that call for qualities including high strength, mild corrosion resistance, and heat resistance.

An interesting fact about the ASTM A193 B6 Bolts iAs a result of their magnetic properties, they could be used in applications that call for some magnetic capability. TheAsme Sa 193 B6 fasteners are magnetic in both annealed condition as well as heat treated condition. These high hardness A193 B6 Studs tend to be impervious to corrosion caused by water, the atmosphere, and some substances, including acids that could be found in food. Consequently, the fasteners, such as theA193 B6 Bolt could be used in the food and beverage business as well as the pharmaceutical industry.

compare ASTM A193 Grade B6 Bolts price with Stainlesss Steel 316 Fasteners price list

ASTM A193 Grade B6 Bolts Specification Chart
Dimensions
ASME B18.2.1, B18.3
Melt Origin
South America/East Europe/JapanKorea/
Product Origin
Made in India
Threads Configuration
ASME B1.1 2A/3A Inch Unified Threads and B1.13M 6h Metric Coarse Threads
Certification
Dual Certified As per ASTM & ASME Codes
Additional Certifications
PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Mandatory Requirements
Free from Mercury & Radioactive Contamination
Additional Requirements
NACE MR0103 / MR0175 / ISO 15156 Compliance



Check ASTM A193 B6 Stud Bolts specifications, Material Composition and dimensions online

Price List of A193 B6 Bolt
ASTM A193 Grade B6 Fasteners
Price
ASTM A193 Grade B6 Structural Bolt
US $13.21 / pkg. of 25 / Kilogram
ASTM A193 Grade B6 Hex Nut
US $12.13 / pkg. of 50
ASTM A193 Grade B6 Flat Washer
US $0.09–$5.97
astm a193 grade B6 stud bolt
US $0.001-3 / Piece



ASTM A193 Grade B6 Raw Material
Grade Raw Material Description
B6 13% Chromium Ferritic Steel (AISI 410 Stainless Steel)



Packaging of ASME SA 193 Gr B6 Stainless Steel Studs

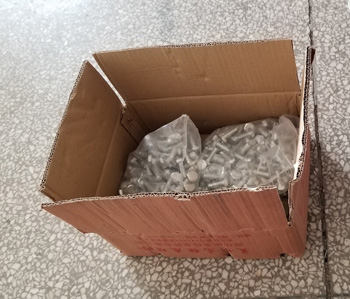

ASTM A193 grade b6 bolts packaging

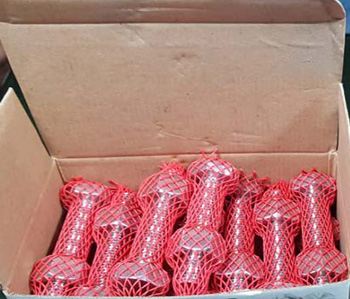

ASME SA 193 Gr B6 bolts packaging



Sa193 Gr B6 Studs Conversion Din To Iso / En
DIN ISO DIN ISO DIN ISO
1 2339 916 4029 1481 8752
7 2338 931 4014 6325 8734
84 1207 933 4017 6914 7412
85 1508 934 4032 6915 7414
94 1234 934 8673 6916 7416
125 7089 937 7038 6921 8102
125 7090 960 8765 6923 4161
126 7091 961 8676 6924 7040
417 7435 963 2009 6925 7042
427 2342 964 2010 7343 8750
433 7092 965 7046 7343 8751
438 7436 966 7047 7344 8748
439 4035 971-1 8673 7346 8749
439 4036 971-2 8674 7971 1481
440 7094 980 7042 7972 1482
551 4766 980 10513 7973 1483
553 7434 982 7040 7976 1479
555 4034 982 10512 7977 8736
558 4018 985 10511 7978 8737
580 3266 1434 2341 7979 8733
601 4016 1440 8738 7979 8735
603 8677 1444 2341 7981 7049
660 1051 1471 8744 7982 7050
661 1051 1472 8745 7983 7051
911 2936 1473 8740 7985 7045
912 4762 1474 8741 7991 10462
913 4026 1475 8742 9021 7093
914 4027 1476 8746 11024 7072
915 4028 1477 8747



ISO to DIN

(one-to-one comparison)

ISO DIN ISO DIN ISO DIN
1051 660/661 4036 439 8673 934
1207 84 4161 6923 8673 971
1234 94 4762 912 8673 971-1
1479 7976 4766 551 8674 971-2
1481 7971 7038 937 8676 961
1482 7972 7040 982 8677 603
1483 7973 7040 6924 8733 7979
1580 85 7042 980 8734 6325
2009 963 7042 6925 8735 7979
2010 964 7045 7985 8736 7977
2338 7 7046 965 8737 7978
2339 1 7047 966 8738 1440
2341 1434 7049 7981 8740 1473
2341 1444 7050 7982 8741 1474
2342 427 7051 7983 8742 1475
2936 911 7072 11024 8744 1471
3266 580 7089 125 8745 1472
4014 931 7090 125 8746 1476
4016 601 7091 126 8747 1477
4017 933 7092 433 8748 7344
4018 558 7093 9021 8749 7346
4026 913 7094 440 8750 7343
4027 914 7412 6914 8751 7343
4028 915 7414 6915 8752 1481
4029 916 7416 6916 8765 960
4032 934 7434 553 10462 7991
4032 932 7435 417 10511 985
4034 555 7436 438 10512 982
4035 439 8102 6921 10513 980



Testing done on ASTM A193 B6 Stainless Steel Bolts

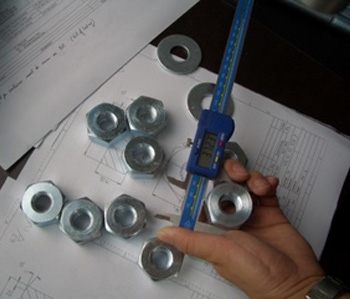

a193 grade b6 nut testing
  • Positive Material Identification Test
  • Hardness Test
  • Tensile Testing Machine
  • IGC Test







Dimensions Table Of A193 B6 Heavy Hex Bolts

ASTM A193 B6 Heavy Hex Bolt Dimension

Diameter (D)
Body Diameter (D)
Across the Flats (F)
Across the Corners ©
Head Height (H)
Thread Lengths (T)
MAX
MIN
MAX
MIN
MAX
MIN
MAX
MIN
< 6”
> 6”
1/2
0.515
0.482
0.875
0.85
1.01
0.969
0.364
0.302
1.25
1.5
5/8
0.642
0.605
1.062
1.031
1.227
1.175
0.444
0.378
1.5
1.75
3/4
0.768
0.729
1.25
1.212
1.443
1.383
0.524
0.455
1.75
2
7/8
0.895
0.852
1.438
1.394
1.66
1.589
0.604
0.531
2
2.25
1
1.022
0.976
1.625
1.575
1.876
1.796
0.7
0.591
2.25
2.5
1 1/8
1.149
1.098
1.812
1.756
2.093
2.002
0.78
0.658
2.5
2.75
1 1/4
1.277
1.223
2
1.938
2.309
2.209
0.876
0.749
2.75
3
1 3/8
1.404
1.345
2.188
2.119
2.526
2.416
0.94
0.81
3
3.25
1 1/2
1.531
1.47
2.375
2.3
2.742
2.622
1.036
0.902
3.25
3.5
1 3/4
1.785
1.716
2.75
2.662
3.175
3.035
1.196
1.054
3.75
4
2
2.039
1.964
3.125
3.025
3.608
3.449
1.388
1.175
4.25
4.5
2 1/4
2.305
2.214
3.5
3.388
4.041
3.862
1.548
1.327
4.75
5
2 1/2
2.559
2.461
3.875
3.75
4.474
4.275
1.708
1.479
5.25
5.5
2 3/4
2.827
2.711
4.25
4.112
4.907
4.688
1.869
1.632
5.75
6
3
3.081
2.961
4.625
4.475
5.34
5.102
2.06
1.815
6.25
6.



ASME SA193 B6 Bolts Dimensions

Hex Bolt Dimension

NOMINAL SIZE (D)
BODY DIAMETER
HEAD THICKNESS
ACROSS THE FLATS
ACROSS BOLTS CORNERS
D (MAX)
D (MIN)
H (MAX)
H (MIN)
F (MAX)
F (MIN)
C (MAX)
C (MIN)
m10
10.00
9.78
6.63
6.17
17.00
15.73
18.48
17.77
m12
12.00
11.73
7.76
4.24
19.00
17.73
20.78
20.03
m14
14.00
13.73
9.09
8.51
22.00
20.67
24.25
23.35
m16
16.00
15.73
10.32
9.68
24.00
23.67
27.71
26.75
m20
20.00
19.67
12.88
12.12
30.00
29.16
34.64
32.95
m24
24.00
23.67
15.44
14.56
36.00
35.00
41.57
39.55
m30
30.00
29.67
19.48
17.92
46.00
45.00
53.12
50.85
m36
36.00
35.61
23.38
21.63
55.00
53.80
63.51
60.79
m42
42.00
41.38
26.97
25.03
65.00
62.90
75.06
71.71
m48
48.00
47.38
31.07
28.93
75.00
72.60
86.60
82.76
m56
56.00
55.26
36.2
33.80
85.00
82.20
98.15
93.71
m64
64.00
63.26
41.32
38.68
95.00
91.80
109.70
104.65
m72
72.00
71.26
46.45
43.55
105.00
101.40
121.24
115.60
m80
80.00
79.26
51.58
48.42
115.00
111.00
132.72
126.54
m90
90.00
89.13
57.74
54.26
130.00
125.50
150.11
143.07
m100
90.00
99.13
63.9
60.10
145.00
140.00
167.43
159.60





ASTM A193 Grade B6 Bolt Size Chart

Bolt Size Chart



ASTM A193 Grade B6 Bolts Type
A193 B6 Square Nuts

A193 B6 Square Nuts

ASTM A193 B6 T Nuts

ASTM A193 B6 T Nuts

A193 Gr. B6 Split Washers

A193 Gr. B6 Split Washers

ASTM A193 Grade B6 Dock Washers

ASTM A193 Grade B6 Dock Washers

ASTM A193 B6 Heavy Hex Bolts

ASTM A193 B6 Heavy Hex Bolts

A193 B6 Countersunk Bolts

A193 B6 Countersunk Bolts

ASME SA193 B6 U Bolts

ASME SA193 B6 U Bolts

ASTM A193 B6 Double Ended Studs

ASTM A193 B6 Double Ended Studs



Heat Treatment of SA 193 B6 Fastener

Quenched & Tempered at 593º C minimum.


Ansi And/or Asme Standards (Inch Series)
ASME B18.1.1 Small Solid Rivets ASME B18.8.1 Clevis Pins and Cotter Pins
ASME B18.1.2 Large Rivets ASME B18.8.2 Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins
ASME B18.2.1 Square and Hex Bolts and Screws ASME B18.9 Plow Bolts
ASME B18.2.2 Square and Hex Nuts ASME B18.10 Track Bolts and Nuts
ASME B18.2.6 Fasteners for use in Structural Applications ASME B18.11 Miniature Screws
ASME B18.3 Socket Cap, Shoulder and Set Screws ASME B18.13 Screws and Washer Assemblies (Sems)
ASME B18.5 Round Head Bolts ASME B18.15 Forged Eyebolts
ASME B18.6.2 Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws ASME B18.17 Wing Nuts, Thumb Screws and Wing Screws
ASME B18.6.3 Machine Screws and Machine Screws Nuts ASME B18.21.1 Lock Washers
ASME B18.6.4 Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws ASME B18.22.1 Plain Washers
ASME B18.7 General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps ASME B18.23.1 Beveled Washers



SA 193 Grade B6 Nuts Marking
Manufacturer's Mark Grade Marking
Simplex Steel B6



Strength Chart ofASTM A193 gr b6 Stud Bolt
Diameter Yield strength loads for shoulder studs as per DIN EN ISO 3506
M 5 2980 6390
M 6 4220 9045
M 8 7685 16470
M 10 12180 26100
M 12 17700 37935
M 16 32970 70650
M 20 51450 110250
M 24 74130 88250
M 27 96390 114750
M 30 117810 140250



ASME SA 193 Grade B6 Recommended Nuts & Washers
Bolting Grade Nut Grade Washer Grade
ASTM A193 Grade B6 ASTM A194 Grade 6 Mild Steel



A193 B6 Threaded Rod Physical Properties
Temperature (°C)
Modulus of elasticity (GPa)
Mean co-eff. of thermal expansion
Thermal conductivity (W/m·°C)
Specific thermal capacity (J/kg·°C)
Specific electrical resistivity (Ω mm²/m)
Density (kg/dm³)
Poisson’s coefficient, ν
31


0.44

525
957
42.3
411


951
21
21.2


444
444



ASTM A193 B6 Stainless Steel Fasteners Related Astm Specifications
  • ASTM F2281 : Specifications for Stainless Steel and Nickel Alloy Bolts, Hex Cap Screws, and Studs, for Heat Resistance and High Temperature Applications Designation
  • ASTM A1082 / A1082M – 16 : Specifications for High Strength Precipitation Hardening and Duplex Stainless Steel Bolting for Special Purpose Applications
  • ASTM A638 / A638M : Specifications for Precipitation Hardening Iron Base Superalloy Bars, Forgings, and Forging Stock for High-Temperature Service
  • ASTM A193 / A193M – 16 : Specifications for High-Temperature Bolting, with Expansion Coefficients Comparable to Austenitic Stainless Steels
  • ASTM A962 / A962M – 16a : Specifications for Common Requirements for Bolting Intended for Use at Any Temperature from Cryogenic to the Creep Range
  • ASTM A1014 / A1014M – 16 : Specifications for Precipitation-Hardening Bolting (UNS N07718) for High Temperature Service



Available Thread of ASME SA 193 Gr B6 Nut Bolt

Acme Threads with Half Thread, Fine, Coarse, UNF, UNC, BSW, UN, Full Thread & Double End Thread Configuration.

Available Thread of ASME SA 193 Gr B6 Nut Bolt



ASTM A193 B6 Hex Head Bolt ISO To Din Changes
DIN ISO →
(DIN ISO)
EN (DIN EN) Range of dimensions1 Changes 2
558
931
933
4018
4014
4017
24018
24014
24017
Ø M 10, 12, 14, 22 New ISO widths across flats
960
961
8765
8676
28765
28676
All other Ø None = DIN and ISO are identical
601
with 555 nuts
4016
with 4034
nuts
24016
24034
Ø M 10, 12, 14, 22 Bolts: new ISO widths across flats
Nuts: new ISO WAF + ISO heights
28030 4014 24014 Other Ø up to M 39 Bolts: none = DIN and ISO are identical
Nuts: new ISO heights
with 555 nuts with 4032
nuts
24032 Other Ø above M 39 None = DIN and ISO are identical
561 - - Ø M 12, 16 New ISO widths across flats
564 - - All other Ø None
609 - - Ø M 10, 12, 14, 22 New ISO widths across flats
610 - - All other Ø None
7968 nuts
7990 nuts
Screws: -
Nuts acc. to
-
24034
M 12, 22 Bolts : new ISO widths across flats
Nuts: new ISO WAF + ISO heights
ISO 4034 All other Ø Bolts : none
Nuts: new ISO heights
186/261
525
603
604
Screws: -
Nuts acc. to
ISO 4034
24034 Ø M 10, 12, 14, 22 Bolts : none
Nuts: new ISO WAF + ISO heights
605 All other Ø Bolts : none
607 Nuts: new ISO heights
608
7969
11014
439 T1
(A=out bevel)
439 Tz
4036
4035
24036
24035
Ø M 10, 12, 14, 22 New ISO widths across flats
(no change in height)
(B=with evel) = standard
thread
8675
= fine thread
28675 All other Ø None = DIN and ISO are identical
(no change in height)
555 4034 24034 Ø M 10, 12, 14, 22 New ISO WAF + new ISO heights
(ISO type 1)
934 4032 24032
= standard
Rd. 6, 8, 10 thread
(ISO type 1)
Other Ø up to M 39 New ISO heights
Strength class : 12 4033 24033 (no change to WAF)
= standard
thread
(ISO type 2)
Strength class is
6, 8, 10
= fine thread
(ISO Type 1)
28673 Ø above M 39 None, DIN and ISO are identical





Dimensional Standards of Sa 193 B6 Fasteners
Hexagon Bolts / Set Screws Stud Bolts Hexagon Nuts Socket Cap Screws
DIN 931 BS4882 DIN 934 DIN 912
DIN 933 DIN 976 BS 1768 DIN 6912
BS 1768 BS 1769 DIN 7984
UNI 5731 BS 1083 ANSI B18.3
UNI 5739 BS 3692 ISO 4762
ISO 4014 ISO 4032 UNI 5931
ISO 4017 ISO 4033 BS 2470
BS 1769 ANSI B18.2.2 BS 4168
BS 3692
ANSI B18.2.1



Socket & Slotted Set Screws Socket & Slotted Countersunk Screws Studs Washers
DIN 913 DIN 963 DIN 938 DIN 125
DIN 914 DIN 7991 DIN 939 DIN 9021
DIN 915 BS 4168 DIN 2510 BS 4320
DIN 916 BS 1981 BS 4439 BS 3410
DIN 551 BS 483 BS 2693
DIN 553 BS 2470 Spring Washers
DIN 438 DIN 127
BS 4168 BS 4464
BS 1802



Surface Coating of A193 Grade B6 Threaded Fasteners
  • Oxidized
  • Passivation
  • Electro Polished
  • Zinc Plating
  • Hot Dipped Galvanizing
  • Chrome Plating
  • Mirror Buffed
  • Epoxy Coating
  • Teflon Coating
Surface Coating of A193 Grade B6 Threaded Fasteners



Various Metric Sizes To The Closest Inch Equivalent Comparision
Metric
Closest Inch
M1.4-0.3
0-80 (Larger)
M2-0.4
1-64 (Smaller)
M2.5-0.45
3-56 (Larger)
M3-0.5
4-48 (Smaller)
M3.5-0.6
6-40 (Same)
M4-0.7
8-36 (Larger)
M5-0.8
10-32 (Smaller)
M6-1.0
1/4-28 (Larger)
M7-1.0
1/4-28 (Smaller)
M8-1.25
5/16-18 (Smaller)
M10-1.5
3/8-16 (Smaller)
M12-1.75
1/2-13 (Larger)
M14-2.0
9/16-12 (Larger)
M16-2.0
5/8-11 (Smaller)
M18-2.5
3/4-10 (Larger)
M20-2.5
3/4-10 (Smaller)
M22-2.5
7/8-9 (Larger)
M24-3.0
1-8 (Larger)
M30-3.5
1 1/8-7 (Smaller)
M36-4.0
1 3/8-6 (Smaller)



A193 Gr b6 Socket Set Screws Weight
LENGTH \DIA M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M16 M20 M24
2 0.0019 0.0029
2.5 0.0025 0.0037 0.0063
3 0.0029 0.0044 0.0075 0.010
4 0.0037 0.0059 0.0100 0.014 0.023
5 0.0046 0.0074 0.0125 0.018 0.0305 0.042
6 0.0054 0.0089 0.0150 0.022 0.038 0.054 0.074
8 0.0070 0.0119 0.0199 0.030 0.053 0.078 0.109 0.188
10 0.0148 0.0249 0.038 0.068 0.102 0.144 0.251 0.372
12 0.0299 0.046 0.083 0.126 0.179 0.314 0.473 0.67
16 0.062 0.113 0.174 0.249 0.440 0.673 0.95 1.57
20 0.140 0.222 0.319 0.566 0.872 1.23 2.09 3.13
25 0.282 0.407 0.724 1.120 1.58 2.74 4.14 5.52
30 0.494 0.881 1.370 1.93 3.39 5.17 7.03
35 1.040 1.620 2.27 4.04 6.20 8.53
40 1.200 1.870 2.62 4.69 7.23 10.00
45 2.120 2.97 5.33 8.26 11.50
50 2.360 3.32 5.98 9.26 13.00
55 3.66 6.63 10.30 14.50
60 4.01 7.28 11.40 16.00



Chemical Composition of ASTM A193 B6 Bolt
Grade
C
Mn
Si
P
S
Cr
Mo
Ni
N
317
min.
max.
-
0.080
-
2
-
1
-
0.045
-
0.030
-
19
-
-
-
13
-
-



ASTM A193 Grade B6 Fasteners Mechanical Properties
Grade
Diameter
Tensile ksi, min
Yield, ksi, min
Elong, %, min
RA % min
HBW
HRC
B6
Up to 4, incl
110
85
15
50
-
-
B6X
90
70
16



SA193 B6 Bolt Equivalent Grade
AISI
UNS
ASTM
410
41000
ASTM A193 GRADE B6



Application of A193 B6 Fasteners
  • Aircraft Exhaust Manifolds
  • Chemical Industry
  • Power Generation
  • Pharmaceuticals
  • Water Supply Systems
  • Pharmaceutical Equipment
  • Specialty Chemicals
  • Petrochemicals
  • Gas Processing
  • Heat Exchangers
  • Off-Shore Oil Drilling Companies
  • Sea Water Equipment
  • Food Processing Industry



Stock List Of ASTM A193 Grade B6 Bolts
ASTM A 193 B6 Lag Bolt
ASTM A193 B6 Stud Bolts
ASTM A193 Grand B6 Stud Bolt
ASTM A193 B6 Stud Bolts
ASTM A 193 Eye Bolt
SS B6 Plow Bolt
SS B6 Step Bolt
ASTM A 193 B6 Stud Bolt
SA193 Nuts
ASTM A193 J Bolt
Stainless Steel B6 Threaded Rod
B6 Hanger Bolt
ASTM A 193 B6 Heavy Hex Bolts
A193 B6 Hex Nut
ISO Approved ASTM A193 U Bolts
Stainless Steel B6 Studs
ASTM A 193 Tie Rod
ASTM A193 stud bolts
B6 Stainless Steel Stud bolts
ASTM A 193 B6 Studs
Stainless Steel B6 Draw Bolt
B6 Grub Screw
ASTM A193 B6 Anchor Bolt
B6 Shoulder Bolt
