Stainless Steel Hex Bolt Manufacturer In India

Suppliers of SS 316 and 304 hex head Bolt according to intenational standard, Check Price list Mumbai

Table Of Content:



Stainless Steel Hex Bolt



All Sizes available in Stainless Steel M6 and A2-70 Heavy Hex Head Bolt with Test Certificates, View dimensions chart

One of the most often utilised classes of stainless steel alloys is austenitic steel. This class includes a number of alloys, such as stainless steel hex bolts in grades 304, 316, and 310. The variation in their content gives each grade of stainless steel hex head bolt its matching feature, despite the fact that the microstructure of these alloys is comparable due to their elemental composition. For instance, the alloy produced by a manufacturer of stainless steel hex bolts using grade 310 will function better at higher temperatures and have better corrosion resistance features.

Additionally, grade 310 stainless steel hex head shoulder bolts often have substantially higher creep strengths than grade 304. Having said that, grade 304 stainless steel hex bolt and nuts compete with other stainless steels since utilising this alloy for systems is more cost-effective than using other alloys, thus grade 304 always prevails. The use of grade 304 stainless steel heavy hex bolt is appropriate for applications where having a high cost is not acceptable due to its reasonably high strength and adequate resistance to corrosion. We are one of India's oldest Hex Bolt manufacturers.

Grade 316 is a further well-liked and versatile alloy. Alloy 316 Stainless Steel High Tensile Hex Bolts, often known as marine grade, exhibit exceptional resistance to marine environments. They work well even in freshwater sources with a lot of chlorine ions. Because of this, grade 316 stainless steel hex bolts M6 X 25mm are frequently used for engineering purposes in both freshwater sources and marine engineering.



Compare Stainless Steel Hex Bolt price with inconel 625 Bolt price list



Stainless Steel Hex Bolt Specification Table
DIN Standard B.S. DIN 931, DIN 933, DIN 912, DIN 934, DIN 6923, DIN 603, DIN 7981, DIN 970, DIN916, DIN 7982, DIN 7985, DIN 913
UTS NPT, UNS, UNF, UNC, UNEF, NPTF
ISO ISO 4033, ISO 4032, ISO 7380, ISO 4017, JIS standards
Size
    • M2-M24 Cold Froging
    • M24-M100 Hot forging, up to 1100mm lg, 1-1/2” Dia
    • CNC and Machining for Customized connecting element: up to 1500mm lg, up to M100 / 4” Dia

M16, M2, M8, M24, M6, M160, (M18), M4, M30, M36, (M27), M10, M48, M12, (M45), (M3.5), (M22), (M14), M5, M3, M42, M20, M33 and as per customer requirement
Grade
A2-70, 18-8 Stainless Steel,4.8, A4-70, A4, 8.8, A2, A4-80 Hex Bolt
British standards BS6105 (old: BSENISO 3506) which covers Part 1 Bolt, screw and Us, part 2 nuts and part 4 tapping screws.
Length 3 to 200 mm
Threads: METRIC, BSW, UNC, UNF, BSF or as required
Tolerance +/-0.01 to +/-0.05 millimeter
Head drive: Slotted, Phillips, Six-Lobe, Phillips/Slot etc
Finishing: black oxide, (yellow, black, blue),
Dacroment, Zinc white, some special one like DACROMET and Mechanically Applied coating, plated zinc-nickel, Geometry, nickel plated, anodizing, Stainless steel: Passivated
Bright Zinc Plated (BZP), Self-Colour, Sherardized, Hot Dip Galvanised (HDG)
Standard: ISO, ASTM, DIN, JIS, IS, GB, BS, and all International Standards
ANSI
  • ASME B18.5
  • ANSI B 28.2.4 1M
  • GB/T5783, GB/T5782, GB5783
  • length are defined in ASME B16.5 standard Hexagon Bolt
  • ANSI B 18.2.4 2M
  • defined in ASME B18.2.2 are Hex nuts
Manufacturing process Inspection, nsert tapping, Wire Drawing, Heat Treatment, Cold Heading, surface Plating, Packing
Surface treatment
  • Passivation
  • Polish
  • Sand blasting
  • Black oxide coating
  • Anodizing
  • Heat-disposing
  • Hot dip galvanized Hex Bolt
  • Electroplating ( blue, color, white, Ni, black zinc, tin, Cr, silver, copper)
Top Manufacturers GKW, SPAX® Screws, Kundan,Unbrako, APL, Infasco,Sundaram Precision, EBY Fastener Etc.
Stainless Steel Hex Bolt Packing: IN BULK: pallet, canton, carton /Small Boxs / pallet as per customer request
Surface Coating:
  • Hot Dipped Galvanizing Hex Bolt
  • Phosphate Hex Bolt
  • Teflon Hex Bolt
  • Ptfe Coated Hex Bolt
  • Xylon Hex Bolt
  • Zinc Phosphate Hex Bolt
  • Manganese Phosphate
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)
  • ZAC (Zinc Alluminium Flake Coating)
  • Cadmium Hex Bolt

surface finishes provided in Galvanised, Zinc, Geomet & PTFE, Sherardized, Dacromet, Electroless Nickel,

Certificate:
  • Suitability test for calibrated preload to EN 14399-10
  • Tri-Roll Thread Comparators
  • Manufacturer Test Certificate as per EN 10204 / 3.1,
  • Charpy Impact testing in accordance with ISO 148-1
  • Hardness testing to ISO 6508-1
  • Nut proof load testing to ISO 898-2
  • Suitability for preloading to EN 14399-2
  • Tensile testing to ISO 898-1
  • Calibrated gauges and tools



Stainless Steel Hex Bolt And Nuts packaging

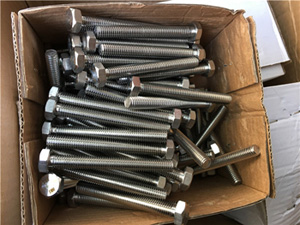

packaging of Stainless Steel Hex Bolts
packaging of Stainless Steel Hex Bolts



Price list of Stainless Steel Hex Bolt
Description Per Unit (INR) Price in USD Price in EURO
Stainless Steel Long Hex Bolt M12 X 60 Mm 131 1.77 1.45
Stainless Steel Long Hex Bolt Full Thread M12 X 45 Mm 122 1.65 1.35
Stainless Steel Long Hex Bolt (Full Thread)M16 X 85 Mm 230 3.11 2.54
Stainless Steel Long Hex Bolt (Full Thread) M12 X 75 Mm 139 1.88 1.54
Stainless Steel 316 Long Hex Bolt (Full Thread) M20 X 85 Mm 399 5.40 4.41
12x25mm Stainless Steel Hex Bolt 21 0.28 0.23



SS Hex Bolt Manufacturer In India
Stainless Steel Heavy Hex Bolts

Stainless Steel Heavy Hex Bolt

Stainless Steel Lag Bolts

Stainless Steel Lag Bolt

Stainless Steel Anchor Bolts

Stainless Steel Anchor Bolt

Stainless Steel Hex Bolts

Stainless Steel Hex Bolt

Stainless Steel Allen Cap Bolt

Stainless Steel Allen Cap Bolt

Stainless Steel Countersunk Bolts

Stainless Steel Countersunk Bolt

Stainless Steel Carriage Bolts

Stainless Steel Carriage Bolt

Stainless Steel Flange Bolts

Stainless Steel Flange Bolt

Stainless Steel Threaded Rod

Stainless Steel Threaded Rod

Stainless Steel Stud Bolts

Stainless Steel Stud Bolt

Stainless Steel Double Ended Studs

Stainless Steel Double Ended Studs

Stainless Steel Tie Rods

Stainless Steel Tie Rods



SS Hex Head Bolt torque chart
Stainless Steel Torque Specifications
Threads
Per Inch
Bolt Size
Inches or #
Standard Dry Torque in Inch-Pounds
316
Stainless Steel

48 #3 4.0
56 4.6
24 #10 23.8
32 33.1
32 #6 10.1
40 12.7
40 #5 8.1
44 9.8
Threads
Per Inch
Bolt Size
Inches or #
in Inch-Pounds Standard Dry Torque
316
Stainless Steel
304
Stainless Steel
20 1/4 78.8 75.2
28 99.0 94.0
18 5/16 138 132
24 147 142
16 3/8 247 236
24 271 259
14 7/16 393 376
20 418 400
13 1/2 542 517
20 565 541
Threads
Per Inch
Bolt Size
Inches or #
Standard Dry Torque in Inch-Pounds
316
Stainless Steel

12 9/16 713
18 787
11 5/8 1160
18 1301
10 3/4 1582
16 1558
9 7/8 2430
14 2420
8 1 3595
14 3250
Threads
Per Inch
Bolt Size
Inches or #
Standard Dry Torque in Foot-Pounds
316
Stainless Steel

7 1 1/8 432
12 408
7 1 1/4 546
12 504
6 1 1/2 930
12 732



316 Stainless Steel Hex Bolt proof load chart

Proof Load

Nom Bolt Size
(in)		 Grade
2 5 8 Lamalloy
Proof Load (lbf )
1/4 1750 2700 3800 4600
5/16 2900 4450 6300 7600
3/8 4250 6600 9300 11250
7/16 5850 9050 12800 15400
1/2 7800 12100 17000 20600
9/16 10000 15500 21800 26400
5/8 12400 19200 27100 32750
3/4 15200 28400 40100 48500
7/8 18400 39300 55400 67000
1 20000 51500 72700 87900
1 1/8 25200 56500 91600 110700
1 1/4 32000 71700 116300 140500
1 3/8 38100 85500 138600 167500
1 1/2 46400 104000 168600 203700

Clamp Load

Nom Bolt Size
(in)		 Grade
2 5 8 Lamalloy
Clamp Load (lbf )
1/4 1313 2025 2850 3450
5/16 2175 3338 4725 5700
3/8 3188 4950 6975 8438
7/16 4388 6788 9600 11550
1/2 5850 9075 12750 15450
9/16 7500 11625 16350 19800
5/8 9300 14400 20325 24563
3/4 11400 21300 30075 36375
7/8 13800 29475 41550 50250
1 15000 38625 54525 65925
1 1/8 18900 42375 68700 83025
1 1/4 24000 53775 87225 105375
1 3/8 28575 64125 103950 125625
1 1/2 34800 78000 126450 152775



Stainless Steel Hex Bolt A2-70 testing
  • Positive Material Identification – PMI Testing
  • Mechanical Testing Such as Tensile of Area
  • Chemical Analysis – Spectro Analysis
  • Flattening Test
  • Pitting Resistance Test
  • Flaring Test
  • Intergranular Corrosion (IGC) Test
  • Hardness Test
  • Micro and MacroTest



SS 304 Hex Bolt Dimensional Standards
  • DIN 558
  • DIN-EN14399-4
  • DIN 601
  • CSN 21301
  • EU 24016
  • DIN7990
  • ISO 4016
  • JIS B1180
  • ISO 4018
  • DIN 7968
  • BS 1083
  • DIN 933
  • ASME B18.2.1
  • DIN 931
  • ISO 4017
  • ISO 4014
  • IS1364
  • BS 1768



310 Stainless Steel Heavy Hex Structural Bolt Dimensions

HEAVY HEX STRUCTURAL BOLT DIMENSIONS

Stainless Steel Bolt Size A B C D E
Radius of Fillet		 F
Thread Length		 G
Transitional
Thread Length		 Runout of
Bearing Surface
FIM
max min min max min max
1/2" 0.515 0.482 7/8 0.969 5/16 0.031 0.009 1.00 0.19 0.016
5/8" 0.642 0.605 1-1/16 1.175 25/64 0.062 0.021 1.25 0.22 0.019
3/4" 0.768 0.729 1-1/4 1.383 15/32 0.062 0.021 1.38 0.25 0.022
7/8" 0.895 0.852 1-7/16 1.589 35/64 0.062 0.031 1.50 0.28 0.025
1" 1.022 0.976 1-5/8 1.796 39/64 0.093 0.062 1.75 0.31 0.028
1-1/8" 1.149 1.098 1-13/16 2.002 11/16 0.093 0.062 2.00 0.34 0.032
1-1/4" 1.277 1.223 2 2.209 25/32 0.093 0.062 2.00 0.38 0.035
1-3/8" 1.404 1.345 2-3/16 2.416 27/32 0.093 0.062 2.25 0.44 0.038
1-1/2" 1.531 1.470 2-3/8 2.622 15/16 0.093 0.062 2.25 0.44 0.041



Dimension Chart of SS Hex Bolt

Stainless Steel Heavy Hex Bolt Dimension

Diameter (D)
Thread Lengths (T)
Across the Flats (F)
Body Diameter (D)
Head Height (H)
Across the Corners ©
< 6”
> 6”
MAXIMUM
MINIMUM
MAXIMUM
MINIMUM
MAXIMUM
MINIMUM
MAXIMUM
MINIMUM
5/8
1.5
1.75
1.062
1.031
0.642
0.605
0.444
0.378
1.227
1.175
1/2
1.25
1.5
0.875
0.85
0.515
0.482
0.364
0.302
1.01
0.969
7/8
2
2.25
1.438
1.394
0.895
0.852
0.604
0.531
1.66
1.589
3/4
1.75
2
1.25
1.212
0.768
0.729
0.524
0.455
1.443
1.383
1 1/8
2.5
2.75
1.812
1.756
1.149
1.098
0.78
0.658
2.093
2.002
1
2.25
2.5
1.625
1.575
1.022
0.976
0.7
0.591
1.876
1.796
1 3/8
3
3.25
2.188
2.119
1.404
1.345
0.94
0.81
2.526
2.416
1 1/4
2.75
3
2
1.938
1.277
1.223
0.876
0.749
2.309
2.209
1 3/4
3.75
4
2.75
2.662
1.785
1.716
1.196
1.054
3.175
3.035
1 1/2
3.25
3.5
2.375
2.3
1.531
1.47
1.036
0.902
2.742
2.622
2 1/4
4.75
5
3.5
3.388
2.305
2.214
1.548
1.327
4.041
3.862
2
4.25
4.5
3.125
3.025
2.039
1.964
1.388
1.175
3.608
3.449
2 3/4
5.75
6
4.25
4.112
2.827
2.711
1.869
1.632
4.907
4.688
2 1/2
5.25
5.5
3.875
3.75
2.559
2.461
1.708
1.479
4.474
4.275
3
6.25
6.
4.625
4.475
3.081
2.961
2.06
1.815
5.34
5.102
Size Chart of Stainless Steel Hex Bolt

Stainless Steel Hex Bolt Size Chart

Dimensions of Stainless Steel Heavy Hex Bolt

Stainless Steel Hex Bolt Dimension

NOMINAL SIZE (D)
ACROSS THE FLATS
HEAD THICKNESS
DIAMETER OF BODY
ACROSS Bolt CORNERS
F (MAXIMUM)
F (MINIMUM)
H (MAXIMUM)
H (MINIMUM)
D (MAXIMUM)
D (MINIMUM)
C (MAXIMUM)
C (MINIMUM)
m12
19.00
17.73
7.76
4.24
12.00
11.73
20.78
20.03
m10
17.00
15.73
6.63
6.17
10.00
9.78
18.48
17.77
m16
24.00
23.67
10.32
9.68
16.00
15.73
27.71
26.75
m20
30.00
29.16
12.88
12.12
20.00
19.67
34.64
32.95
m14
22.00
20.67
9.09
8.51
14.00
13.73
24.25
23.35
m30
46.00
45.00
19.48
17.92
30.00
29.67
53.12
50.85
m24
36.00
35.00
15.44
14.56
24.00
23.67
41.57
39.55
m42
65.00
62.90
26.97
25.03
42.00
41.38
75.06
71.71
m48
75.00
72.60
31.07
28.93
48.00
47.38
86.60
82.76
m36
55.00
53.80
23.38
21.63
36.00
35.61
63.51
60.79
m64
95.00
91.80
41.32
38.68
64.00
63.26
109.70
104.65
m56
85.00
82.20
36.2
33.80
56.00
55.26
98.15
93.71
m72
105.00
101.40
46.45
43.55
72.00
71.26
121.24
115.60
m90
130.00
125.50
57.74
54.26
90.00
89.13
150.11
143.07
m80
115.00
111.00
51.58
48.42
80.00
79.26
132.72
126.54
m100
145.00
140.00
63.9
60.10
90.00
99.13
167.43
159.60



Available Grade of Stainless Steel Hex Tap Bolt
  • Stainless Steel 316H Hex Bolt
  • Stainless Steel 304L Hex Bolt
  • Stainless Steel 304 Hex Bolt
  • Stainless Steel 304H Hex Bolt
  • Stainless Steel 317 Hex Bolt
  • Stainless Steel 904L Hex Bolt
  • Stainless Steel 317L Hex Bolt
  • Stainless Steel 316L Hex Bolt
  • Stainless Steel 18-8 Hex Bolt
  • Stainless Steel 321 Hex Bolt
  • Stainless Steel 347 Hex Bolt
  • Stainless Steel 310 Hex Bolt
  • Stainless Steel 316 Hex Bolt
  • Stainless Steel 410 Hex Bolt



Stainless Steel High Tensile Hex Bolt Popular head style

Stainless Steel High Tensile Hex Bolts Popular head style



SS 316 Hex Bolt Weight Chart

Weights For DIN 6914 Bolt

Dia M16 M12 M20 M24 M22 M30 M27 M36
Length
30 49.1
35 53.6
40 105 58.0
45 113 62.1 188
50 121 66.6 200 257
55 129 71.0 212 272
60 137 75.4 225 362 286
65 145 79.9 237 380 301
70 153 84.3 249 398 316 532
75 160 88.8 262 415 331 701 554
80 168 93.2 274 433 346 728 576
85 176 97.6 286 451 361 756 599 1184
90 184 102 298 467 375 784 621 1224
95 192 107 310 485 390 812 644 1264
100 199 322 503 405 838 665 1304
105 207 335 520 420 865 688 1336
110 215 347 538 435 893 710 1376
115 223 359 556 450 921 732 1415
120 231 372 574 465 949 755 1455
125 239 384 591 479 976 777 1495
130 247 396 609 494 1004 800 1535
135 409 627 509 1032 822 1575
140 421 645 524 1059 845 1615
145 433 662 539 1087 867 1655
150 446 680 554 1115 890 1695
155 458 698 569 1143 912 1735
160 716 584 1170 935 1775
165 733 599 1198 957 1815
170 751 1226 979 1855
175 769 1254 1002 1895
180 787 1281 1024 1935
185 804 1309 1047 1974
190 822 1337 1069 2014
195 840 1365 1092 2054
200 1392 1114 2094



SS Heavy Hex Bolt DIN Grades Available
  • With Square Head Tee-Head Bolts DIN 186 A
  • Anchor Bolts DIN 529 B(Stone Bolts)
  • Masonry Bolts DIN 529 C With Hexagon Nuts
  • Lifting Eye Bolts DIN 580
  • Eye Bolts DIN 444 A
  • G Bolts DIN 529
  • DIN 7969 with hexagon nut for steel structures Slotted countersunk head Bolts
  • DIN 188 With Double Nip Tee-Head Bolts
  • Square Head Bolts DIN 480
  • (Stone Bolts) Anchor Bolts DIN 529 A
  • (Stone Bolts) DIN 529 D Anchor Bolts
  • Square Head Bolts DIN 479
  • (Stone Bolts) Anchor Bolts DIN 529 F
  • Square Head Bolts DIN 478
  • Fully Threaded DIN 558 Maching Bolts
  • With Hexagon Nuts Foundation Bolts DIN 529 E
  • Flat Countersunk Square Neck Bolts DIN 605
  • Round Head DIN 607 Nip Bolts With Nuts
  • U Bolts DIN 3570
  • Hexagon Bolts with flange heavy series DIN EN 1665
  • Countersunk Square Bolts DIN 608(Short Neck)
  • Hex Flange Bolts DIN 6921
  • With Hexagon Nuts DIN 603 Mu Carriage Bolts
  • For High Strength Struc. Boltsing DIN 6915 Hex Nuts
  • Hex Bolts For High Strength Struct. Boltsing DIN 6914
  • For High Strength Structural Boltsing DIN 6916 Washers
  • Hexagon head Bolts with nut DIN 601
  • with hexagon nut for steel structures DIN 7968 Hexagon fit Bolts
  • Hex fitting Bolts w/short Threaded Portion DIN 610
  • Flat Countersunk DIN 604 Nip Bolts With Hex Nuts
  • w/long Threaded Portion Hex Fitting Bolts DIN 609



DIN 933 Hex Bolt Dimensions Schedule
D1D1 K E S
M3 2 6.01 5.5
M4 2.8 7.66 7
M5 3.5 8.79 8
M6 4 11.05 10
M8 5.3 14.38 13
M10 6.4 18.9 17
M12 7.5 21.1 19
M14 8.8 24.49 22
M16 10 26.75 24
M18 11.5 30.14 27
M20 12.5 33.53 30
M22 14 35.72 32
M24 15 39.98 36
M27 17 45.2 41
M30 18.7 50.85 46
M33 21 55.37 50
M36 22.5 60.79 55
M42 26 71.3 65
M48 30 82.6 75



Bolt Coating's of SS Hex Head Shoulder Bolt
Stainless Steel hex Bolt Coating's
Oxidized
Passivation
Epoxy Coating
Hot Dipped Galvanizing
Zinc Plating
Chrome Plating
Teflon Coating
Mirror Buffed
Electro Polished



Stainless Steel Hex Head Bolt Test Certificates
  • EN 10204/3.1B,
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report etc



ISO 4017 Hexagon Bolt Dimensions Table
D1D1 K E S
M3 2 6.01 5.5
M4 2.8 7.66 7
M5 3.5 8.79 8
M6 4 11.05 10
M8 5.3 14.38 13
M10 6.4 18.9 16
M12 7.5 21.1 18
M14 8.8 24.49 21
M16 10 26.75 24
M18 11.5 30.14 27
M20 12.5 33.53 30
M22 14 35.72 34
15 39.98 36
M27 17 45.2 41
M30 18.7 50.85 46
M33 21 55.37 50
M36 22.5 60.79 55
M42 26 71.3 65
M48 30 82.6 75



Stainless Steel Hex Bolt And Nuts Ready Stock
  • Stainless Steel Hex Bolts And Nuts
  • Stainless Steel Flanged Hex Bolts
  • Stainless Steel Metric Hex Bolts
  • Stainless Steel Hex Tap Bolts
  • 310 SS Hex Bolts
  • Black Stainless Steel Hex Bolts
  • 304 Stainless Steel Hex Bolts
  • Stainless Steel M6 Hex Bolts
  • Stainless Steel Hex Head Shoulder Bolts
  • Stainless Steel Bolts Hex Head
  • SS 304 Hex Bolts
  • Stainless Steel High Tensile Hex Bolts
  • Stainless Steel Heavy Hex Bolts
  • Stainless Steel Hex Bolts
  • Stainless Steel Hex Bolts A2-70
  • 316 SS Hex Bolts
  • Stainless Steel Hex Head Bolts
  • Stainless Steel Hex Bolts M6 X 25mm



SS Bolt Hex Head Chemical Properties
Grade of Stainless Steel Si≤ C≤ Cr Mn≤ S≤ P≤ Ni
201 1 0.15 16.00-18.00 5.5-7.5 0.03 0.5 3.50-5.50
202 1 0.15 17.00-19.00 7.5-10.0 0.03 0.5 4.00-6.00
Stainless Steel 304 1 0.08 18.00-20.00 2 .00 0.03 0.045 8.00-11.00
304L 1 0.03 18.00-20.00 2 .00 0.03 0.045 8.00-12.00
309 1 0.2 22.00-24.00 2 .00 0.03 0.04 12.00-15.00
Stainless Steel 309S 1 0.08 22.00-24.00 2 .00 0.03 0.045 12.00-15.00
310 1.5 0.25 24.00-26.00 2 .00 0.03 0.04 19.00-22.00
310S 1 0.08 24.00-26.00 2 .00 0.03 0.045 19.00-22.00
Stainless Steel 316 1 0.08 16.00-18.00 2 .00 0.03 0.045 10.00-14.00
316L 1 0.03 16.00-18.00 2 .00 0.03 0.045 10.00-14.00
316Ti 1 0.08 16.00-18.00 2 .00 0.03 0.045 10.00-14.00
410 1 0.15 11.50-13.50 1 .00 0.03 0.04 0.6
430 0.12 0.12 16.00-18.00 1 0.03 0.04 0.6



Stainless Steel Metric Hex Bolt Mechanical Properties
Grades of Stainless Steel Melting Point Density Yield Strength (0.2%Offset) Tensile Strength Elongation
304 1400 °C (2550 °F) 8.0 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 35%
304H 1400 °C (2550 °F) 8.0 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 35%
304L 1400 °C (2550 °F) 8.0 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 35%
310 1402 °C (2555 °F) 7.9 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 40%
316 1400 °C (2550 °F) 8.0 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 35%
316L 1399 °C (2550 °F) 8.0 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 35%
316TI 1399 °C (2550 °F) 8.0 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 35%
317 1400 °C (2550 °F) 7.9 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 35%
317L 1400 °C (2550 °F) 7.9 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 35%
321 1457 °C (2650 °F) 8.0 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 35%
347 1454 °C (2650 °F) 8.0 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 35%
904L 1350 °C (2460 °F) 7.95 g/cm3 Psi 32000 , MPa 220 Psi 71000 , MPa 490 35%
446 1510 °C (2750 °F) 7.5 g/cm3 Psi 40,000 , MPa 275 Psi 75,000 , MPa 485 20%



A2-70 hex Bolt Equivalent Grade
grades UNS WERKSTOFF NR. JIS EN GOST BS AFNOR
Stainless Steel 304 S30400 1.4301 SUS 304 X5CrNi18-10 08Х18Н10 304S31 Z7CN18‐09
SS 304L S30403 1.4306 / 1.4307 SUS 304L X2CrNi18-9 / X2CrNi19-11 03Х18Н11 3304S11 Z3CN18‐10
Stainless Steel 304H S30409 1.4301
SS 316 S31600 1.4401 / 1.4436 SUS 316 X5CrNiMo17-12-2 / X3CrNiMo17-13-3   316S31 / 316S33 Z7CND17‐11‐02
SS 316L S31603 1.4404 / 1.4435 SUS 316L X2CrNiMo17-12-2 / X2CrNiMo18-14-3 03Ch17N14M3 / 03Ch17N14M2 316S11 / 316S13 Z3CND17‐11‐02 / Z3CND18‐14‐03
Stainless Steel 316Ti S31635 1.4571 SUS 316Ti X6CrNiMoTi17-12-2 08Ch17N13M2T 320S31 Z6CNDT17‐123
430 S43000 1.4016
2205 Duplex S31803/S32205 1.4462
420 S42000 1.4021/ 1.4028/ 1.4031/ 1.4034
431 S43100 S80 (aerospace grade) 1.4057
Stainless Steel 310 S31000 1.4841 SUS 310 X15CrNi25-20 20Ch25N20S2 310S24
SS 310S S31008 1.4845 SUS 310S X8CrNi25-21 20Ch23N18 310S16
304LN S30453 1.4311
409 S40900 1.4512
430F S43020 1.4105
303 S30300 1.4305
SS 904L N08904 1.4539 SUS 904L X1NiCrMoCu25-20-5 STS 317J5 904S13 Z2 NCDU 25-20
Stainless Steel 317 S31700 1.4449 SUS 317
SS 317L S31703 1.4438 SUS 317L X2CrNiMo18-15-4
SS 321 S32100 1.4541 SUS 321 X6CrNiTi18-10
Stainless Steel 321H S32109 1.4878 SUS 321H X12CrNiTi18-9
SS 347 S34700 1.455 SUS 347 X6CrNiNb18-10 08Ch18N12B
SS 347H S34709 1.4961 SUS 347H X6CrNiNb18-12
Stainless Steel 410 S41000 1.4006 SUS 410 X12Cr13   410S21
SS 446 S44600 1.4762



weight calculator of SS Heavy Hex Structural Bolt

Click here for Steel Fasteners Weight Calculator



download
Fasteners Types We Manufacture
Other Products
Blog
