201 Stainless Steel Welded Tubes

Refer Weight Chart Of WERKSTOFF NR.1.4436 Heat Exchanger Tube Materials, Manufacturer Of ASTM A554 UNS S20100 ERW Tubing

Table Of Content:

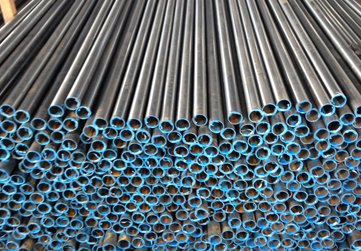

ASTM A213 TP201 Tube

ASTM A213 TP201 Tube

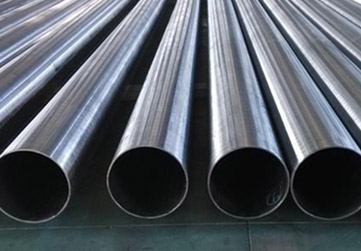

Stainless Steel 201 Welded Tube

Stainless Steel 201 Welded Tube

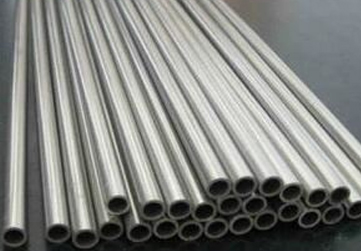

ASME SA213 TP201 Tube

ASME SA213 TP201 Tube

Why to pay extra if you have choice to get exact sizes and wall thickness in SUS 201 Cold Rolled Coiled/Instrumentation Tubing

In general, nickel-containing stainless steels are more expensive than standard alloy or carbon steels. The invention of 201 Stainless Steel Welded Tubes was motivated by the demand for inexpensive, low-nickel alloys. While the amount of nickel in the alloy is kept to a bare minimum, manganese and nitrogen are added to the mixture to replace nickel in the WERKSTOFF NR.1.4436 Heat exchanger Tube.

An austenitic type of stainless steel is represented by this specific alloy. The mechanical properties of an austenitic alloy, like the UNS S20100 U Tube, are changed by the addition of nitrogen. While maintaining austenite stability, the improved chemistry results in an improvement in yield strength. The ASTM A554 TP 201 Instrumentation Tubes' resistance to pitting is also enhanced by nitrogen. On the other hand, manganese is known to enhance the hardenability of austenitic alloys when added. Cold working offers the chance to increase the tensile strength of the Stainless Steel 201 Welded Tube even though the alloy cannot be toughened through the application of heat treatments.

A smoother surface and a very dimensionally stable ASTM A554 TP 201 Welded Tube are two advantages of cold working. High strength and a hardenable SUS 201 Cold Rolled Coiled Tubing material are additional characteristics impacted by the manganese content. Although grade 301 and alloy 304 are other austenitic stainless steels that are stronger, the SS 201 ERW Tubing is thought to be a good substitute.



Specification of Stainless Steel 201 Welded Tube

Standard

ASTM, AISI, GB, JIS, customers' requests available

Size

Round Tube: OD: 16-119mm or customized

Thickness

0.25mm-3.0mm

Length

6m or according to customers' request

Sample

Free sample is available, but freight should be paid by you

Tolerance

Outer diameter: ±0.2mm

Thickness: ±0.05mm

Length: ±0.5mm

Ends

In plain end or bevelled ends or as your requirements

Welding Line Type

ERW (Electrical Resistance Weld)

Finishing

A. Sanded

B. Gloss #400,Mirror #600 - #1000

C. Brushed

D. Wood Grain

E. Embossed, Threaded

Application

Decorations, constructions, food industry, etc.

Certification

ISO, SGS

Round Pipe Size

16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm

Square Pipe Size

17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm

Rectangle Pipe Size

10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm

Thickness

exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm

Length

6m or according to customer’s request

Outer diameter

6.35-219mm

Tolerance

Outer diameter :±0.2mm

Thickness :±0.02mm

Length :±0.5mm

Process method

Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished

Test

Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector

Equipment

Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc

Origin

West Europe / Japanese / Indian / USA / Korean / American / European

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report



Dimensions of ASTM A213 TP201 Tube
OD inches Ave. Wall inches D/t Ratio ID inches Tube Cross Sectional Area (in2) Internal Area (in2)
0.250 0.020 12.50 0.210 0.0145 0.0346
0.250 0.028 8.93 0.194 0.0195 0.0296
0.250 0.035 7.14 0.180 0.0236 0.0254
0.250 0.049 5.10 0.152 0.0309 0.0181
0.250 0.065 3.85 0.120 0.0378 0.0113
0.375 0.020 18.75 0.335 0.0223 0.0881
0.375 0.028 13.39 0.319 0.0305 0.0799
0.375 0.035 10.71 0.305 0.0374 0.0731
0.375 0.049 7.65 0.277 0.0502 0.0603
0.375 0.065 5.77 0.245 0.0633 0.0471
0.500 0.020 25.00 0.460 0.0302 0.1662
0.500 0.028 17.86 0.444 0.0415 0.1548
0.500 0.035 14.29 0.430 0.0511 0.1452
0.500 0.049 10.20 0.402 0.0694 0.1269
0.500 0.065 7.69 0.370 0.0888 0.1075
0.500 0.083 6.02 0.334 0.1087 0.0876
0.625 0.020 31.25 0.585 0.0380 0.2688
0.625 0.028 22.32 0.569 0.0525 0.2543
0.625 0.035 17.86 0.555 0.0649 0.2419
0.625 0.049 12.76 0.527 0.0887 0.2181
0.625 0.065 9.62 0.495 0.1144 0.1924
0.625 0.083 7.53 0.459 0.1413 0.1655
0.625 0.095 6.58 0.435 0.1582 0.1486
0.625 0.109 5.73 0.407 0.1767 0.1301
0.750 0.028 26.79 0.694 0.0635 0.3783
0.750 0.035 21.43 0.680 0.0786 0.3632
0.750 0.049 15.31 0.652 0.1079 0.3339
0.750 0.065 11.54 0.620 0.1399 0.3019
0.750 0.083 9.04 0.584 0.1739 0.2679
0.750 0.095 7.89 0.560 0.1955 0.2463
0.750 0.109 6.88 0.532 0.2195 0.2223
0.750 0.120 6.25 0.510 0.2375 0.2043
0.875 0.020 43.75 0.835 0.0537 0.5476
0.875 0.028 31.25 0.819 0.0745 0.5268
0.875 0.035 25.00 0.805 0.0924 0.5090
0.875 0.049 17.86 0.777 0.1272 0.4742
0.875 0.065 13.46 0.745 0.1654 0.4359
0.875 0.083 10.54 0.709 0.2065 0.3948
0.875 0.095 9.21 0.685 0.2328 0.3685
0.875 0.109 8.03 0.657 0.2623 0.3390
0.875 0.120 7.29 0.635 0.2846 0.3167
1.000 0.028 35.71 0.944 0.0855 0.6999
1.000 0.035 28.57 0.930 0.1061 0.6793
1.000 0.049 20.41 0.902 0.1464 0.6390
1.000 0.065 15.38 0.870 0.1909 0.5945
1.000 0.083 12.05 0.834 0.2391 0.5463
1.000 0.095 10.53 0.810 0.2701 0.5153
1.000 0.109 9.17 0.782 0.3051 0.4803
1.000 0.120 8.33 0.760 0.3318 0.4536
1.000 0.134 7.46 0.732 0.3646 0.4208
1.250 0.035 35.71 1.180 0.1336 1.0936
1.250 0.049 25.51 1.152 0.1849 1.0423
1.250 0.065 19.23 1.120 0.2420 0.9852
1.250 0.083 15.06 1.084 0.3043 0.9229
1.250 0.095 13.16 1.060 0.3447 0.8825
1.250 0.109 11.47 1.032 0.3907 0.8365
1.250 0.120 10.42 1.010 0.4260 0.8012
1.250 0.134 9.33 0.982 0.4698 0.7574
1.500 0.035 42.86 1.430 0.1611 1.6061
1.500 0.049 30.61 1.402 0.2234 1.5438
1.500 0.065 23.08 1.370 0.2930 1.4741
1.500 0.083 18.07 1.334 0.3695 1.3977
1.500 0.095 15.79 1.310 0.4193 1.3478
1.500 0.109 13.76 1.282 0.4763 1.2908
1.500 0.120 12.50 1.260 0.5202 1.2469
1.500 0.134 11.19 1.232 0.5750 1.1921
1.500 0.148 10.14 1.204 0.6286 1.1385
1.750 0.035 50.00 1.680 0.1886 2.2167
1.750 0.049 40.82 1.902 0.3003 2.8413
1.750 0.065 26.92 1.620 0.3441 2.0612
1.750 0.083 21.08 1.584 0.4347 1.9706
1.750 0.095 18.42 1.560 0.4939 1.9113
1.750 0.109 16.06 1.532 0.5619 1.8433
1.750 0.120 14.58 1.510 0.6145 1.7908
1.750 0.134 13.06 1.482 0.6803 1.7250
1.750 0.148 11.82 1.454 0.7449 1.6604
1.750 0.165 10.61 1.420 0.8216 1.5837
2.000 0.035 57.14 1.930 0.2161 2.9255
2.000 0.049 40.82 1.902 0.3003 2.8413
2.000 0.065 30.77 1.870 0.3951 2.7465
2.000 0.083 24.10 1.834 0.4999 2.6417
2.000 0.095 21.05 1.810 0.5685 2.5730
2.000 0.109 18.35 1.782 0.6475 2.4941
2.000 0.120 16.67 1.760 0.7087 2.4328
2.000 0.134 14.93 1.732 0.7855 2.3561
2.000 0.148 13.51 1.704 0.8611 2.2805
2.000 0.165 12.12 1.670 0.9512 2.1904
SS ASTM A213 TP201 Tube Sizes
  • Size: 1/2" OD - 12" OD
  • OD: 3.00 - 219.10 mm
  • Thickness : 0.40 - 12.70 mm
  • Length: Single, Double Random & Cut Length
Chemical Composition of ASTM A213 TP201 Tube
Element Content (%)
Iron, Fe 72
Chromium, Cr 16.0 – 18.0
Manganese, Mn 5.50 – 7.50
Nickel, Ni 3.50 – 5.50
Silicon, Si 1.0
Nitrogen, N 0.25
Carbon, C 0.15



Mechanical Properties of ASME SA213 TP201 Tube
Type Yield Strength 0.2% offset (KSI) Tensile Strength (KSI) % Elongation
(2" Gauge length)		 Hardness Rockwell
SS 201 Ann 38 min. 75 min. 40% min. HRB 95 max.
SS 201 ¼ Hard 75 min. 125 min. 25.0 min. 25 – 32 HRC (typical)
SS 201 ½ Hard 110 min. 150 min. 18.0 min. 32 – 37 HRC (typical)
SS 201 ¾ Hard 135 min. 175 min. 12.0 min. 37 – 41 HRC (typical)
SS 201 Full Hard 145 min. 185 min. 9.0 min. 41 – 46 HRC (typical)



Stainless Steel 201 Tube Yield Strength
Properties Metric Imperial
Density 7.86 g/cm3 0.284 lb/in³
ASTM A213 TP 201 Welded Tube Nominal Wall Thickness
NPS Designator Outside Diameter in. Schedule 5S in. Schedule 10S in. Schedule 40S in. Schedule 80S in.
1/4 0.540 0.065 0.088 0.119
3/8 0.675 0.065 0.091 0.126
1/2 0.840 0.065 0.083 0.109 0.147
3/4 1.050 0.065 0.083 0.113 0.154
1.0 1.315 0.065 0.109 0.133 0.179
1 1/4 1.660 0.065 0.109 0.140 0.191
1 1/2 1.900 0.065 0.109 0.145 0.200
2 2.375 0.065 0.109 0.154 0.218
2 1/2 2.875 0.083 0.120 0.203 0.276
3 3.500 0.083 0.120 0.216 0.300
3 1/2 4.000 0.083 0.120 0.226 0.318
4 4.500 0.083 0.120 0.237 0.337
5 5.563 0.109 0.134 0.258 0.375
6 6.625 0.109 0.134 0.280 0.432
8 8.625 0.109 0.148 0.322 0.500
10 10.750 0.134 0.165 0.365 0.500
12 12.750 0.156 0.180 0.375 0.500
